Specification
|

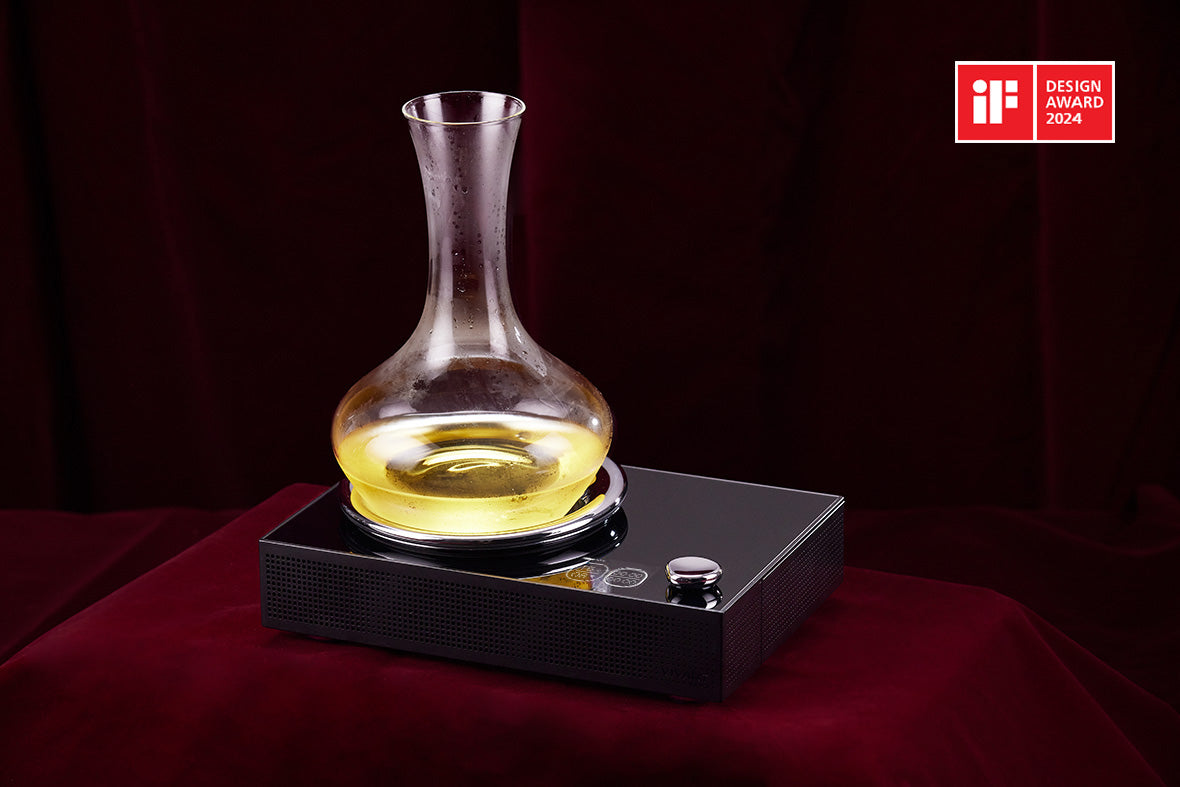

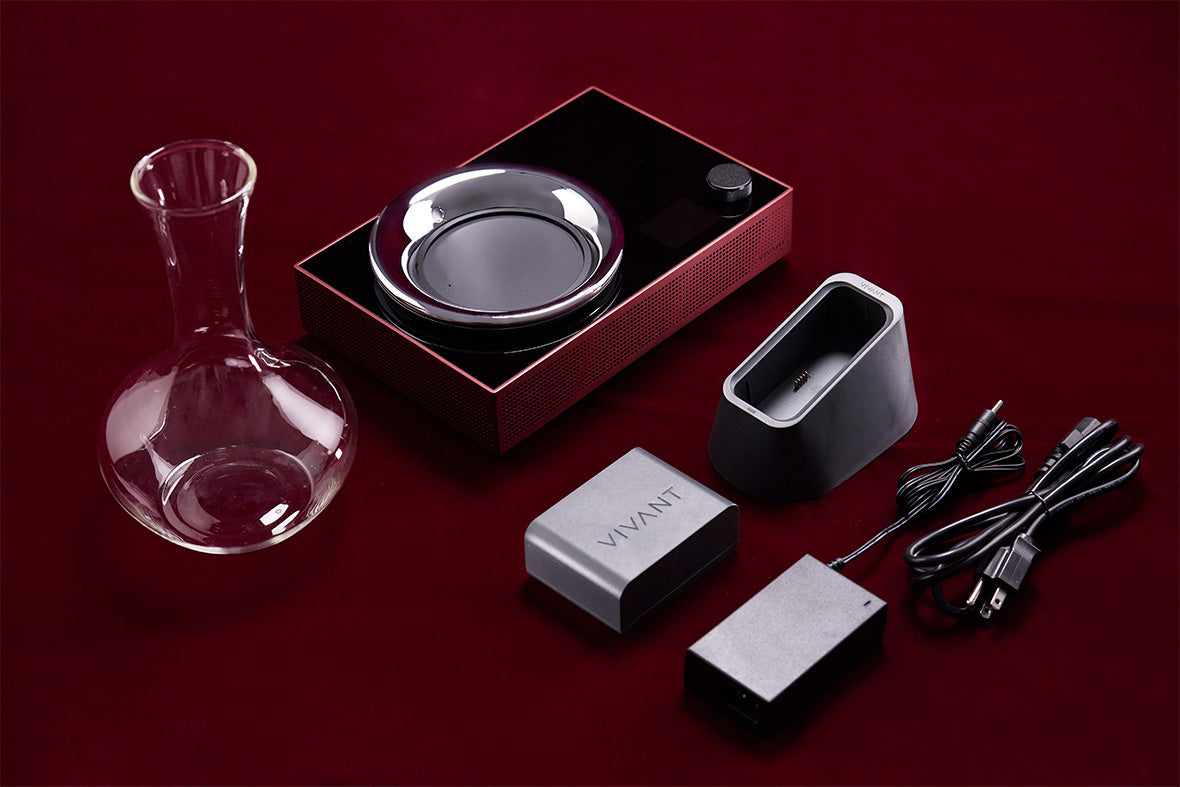

Titan Portable Decanter Chiller |
Description |
|
|
Dimension |
285(L) x 190(W) x 83(H) mm |
|
|
Weight |
2.4KG / 5.29 lbs |
Including a 500g/ 1.1 lbs rechargeable battery |
|
Battery |
18V, 5,500mAh, 99Wh | Life time 2.5~4 hours |
| Voltage | 100~240V, 50~ 60Hz (input) 21.2V, 2.7A (output) |
Full-voltage |
| Decanter | |
| Material | Glass |
| Capacity | 1200 c.c. (Standard Usage 750 c.c.) |
| Dimension | Outer diameter Ø 160mm, height 245mm, bottom diameter Ø 100mm. |
Charging
* Please insert the battery into the device (power should be switched off) and charge it before the initial use or after it has been in prolonged storage.
* To extend the life of the battery, it's suggested to charge it after each use.
① Offline charging :Insert the battery pack into the charging dock, and wait until the indicator light turns from red to green, indicating that the battery is fully charged.
|

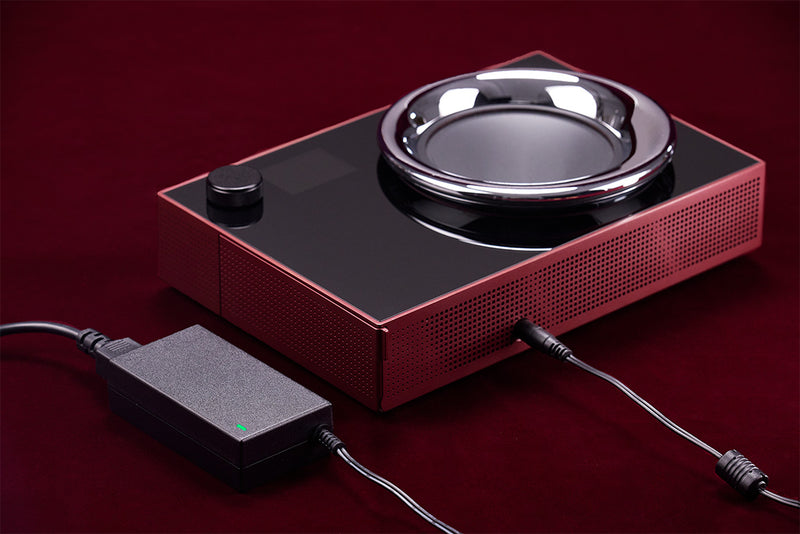

 ② Plug-in charging :Make sure the power of the main unit has been switched off, insert the battery into the VIVANT Titan Portable Decanter Chiller, and plug the charging cable directly into the charging port. |
How to Use
 Plug the charging cord into the charging port or use the battery to activate the VIVANT Titan Portable Decanter Chiller.
|
|
 Get wine from your wine cellar or refrigerator
|
 Pour the wine into the decanter.
|
 Long press the power button for 2 seconds to activate the Titan Portable Decanter Chiller
|
 After setting up your desired temperature, you may enjoy your wine, as the temperature will be maintained precisely by the Titan Portable Decanter Chiller
|
Indicators
Indicators |
LED Indicatior / Quick Guide |
 Power On |
 |
 Welcome |
Then the welcome screen will be shown for 3 seconds, and then the startup screen will appear. |
 |

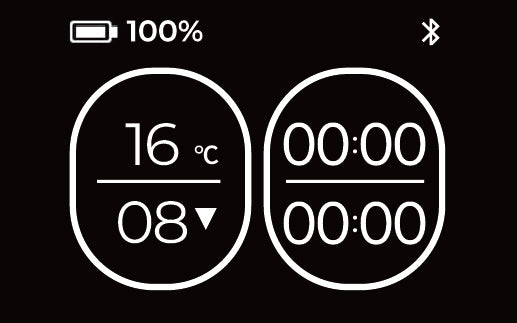

On the power-on screen, the bottom-left indicates the set temperature, the top-left shows the current ambient temperature, the numbers on the right represent the running time since startup, the top-left corner displays the battery status, and the top-right corner indicates the Bluetooth and sound effects. |
 Set up
|

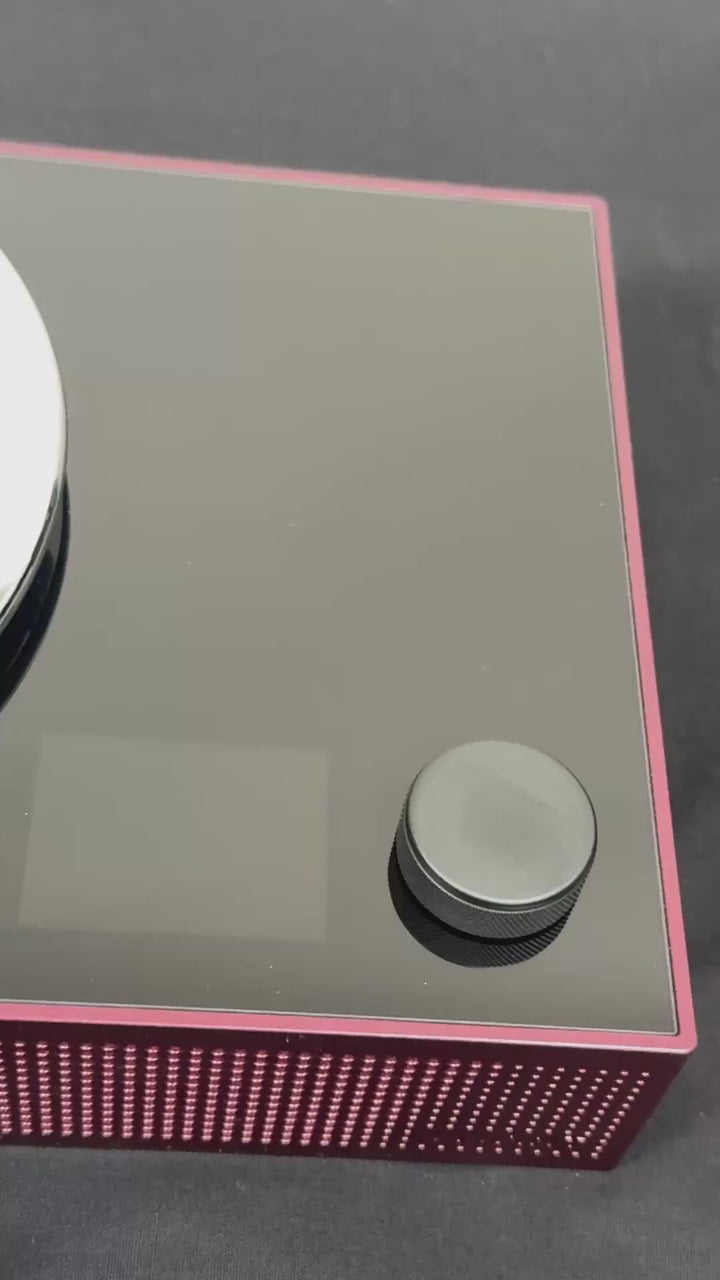

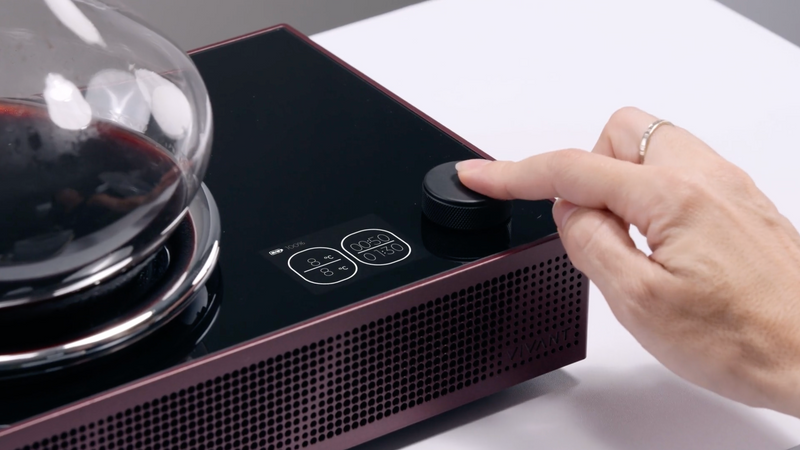

 Short press the rotary button, the screen will flash, and continue to short press to select the desired setting item. |
 Setting Temperature
|
Short press the rotary button once to start adjusting. Rotate the knob clockwise or counterclockwise to set up the desired temperature.
|
 Switch ℃/°F
|
Short press the button again to switch between Celsius and Fahrenheit temperature display. Rotate clockwise to select ℃, rotate counterclockwise to select °F. |
|
|
Short press the button twice to return to the initial set up mode. *Please note that the setting mode ends automatically after 8 seconds of inactivity. |

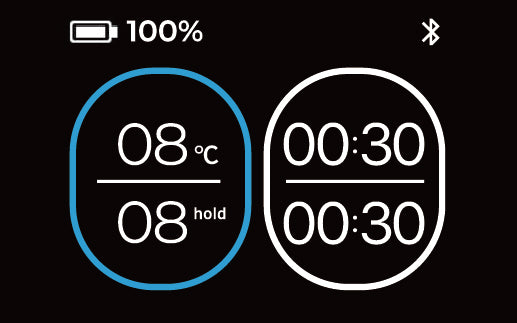

 Reaching Target Temperature |
Once the target temperature is reached, the display will show "hold," and the border surrounding the temperature indication will turn blue. |
|
Power Off |
Press and hold the knob for 2 seconds till display the logo screen, and it will shut down after 5 seconds. |
 |

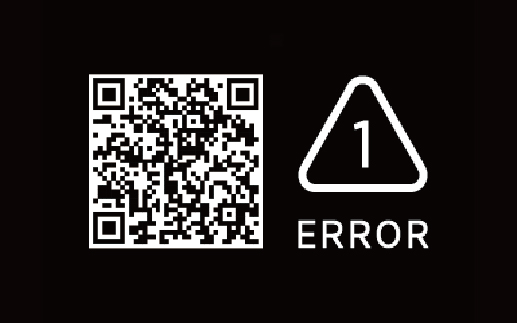

ERROR 1 ：Battery Abnormal or Malfunctioning. |
 |
ERROR 2 ：IR Sensor Abnormal or Malfunctioning |
 |
ERROR 3 ：Fan Abnormal or Malfunctioning |
* Please scan the QR code to contact support
Notices
- Please insert the battery into the device (power should be switched off) and charge it before the initial use or after it has been in prolonged storage.
- To ensure proper heat dissipation, please leave adequate space around the main unit.
- To extend the battery life, it is recommended to charge it after each use. The bottom of the decanter should be flat and in close contact with the cooling plate for optimal heat conduction.
- The battery is custom made for VIVANT products only, do not use non-product chargers to charge, and disassembling the battery is strictly prohibited.
- VIVANT portable decanter chiller with temperature control contains electronic components, please do not place it in high-temperature environments such as dishwashers, microwaves, or ovens.
- This device should only be used by individuals with sufficient knowledge and experience or under the supervision of a responsible person.
- Children should be supervised to ensure that they do not play with the device.
